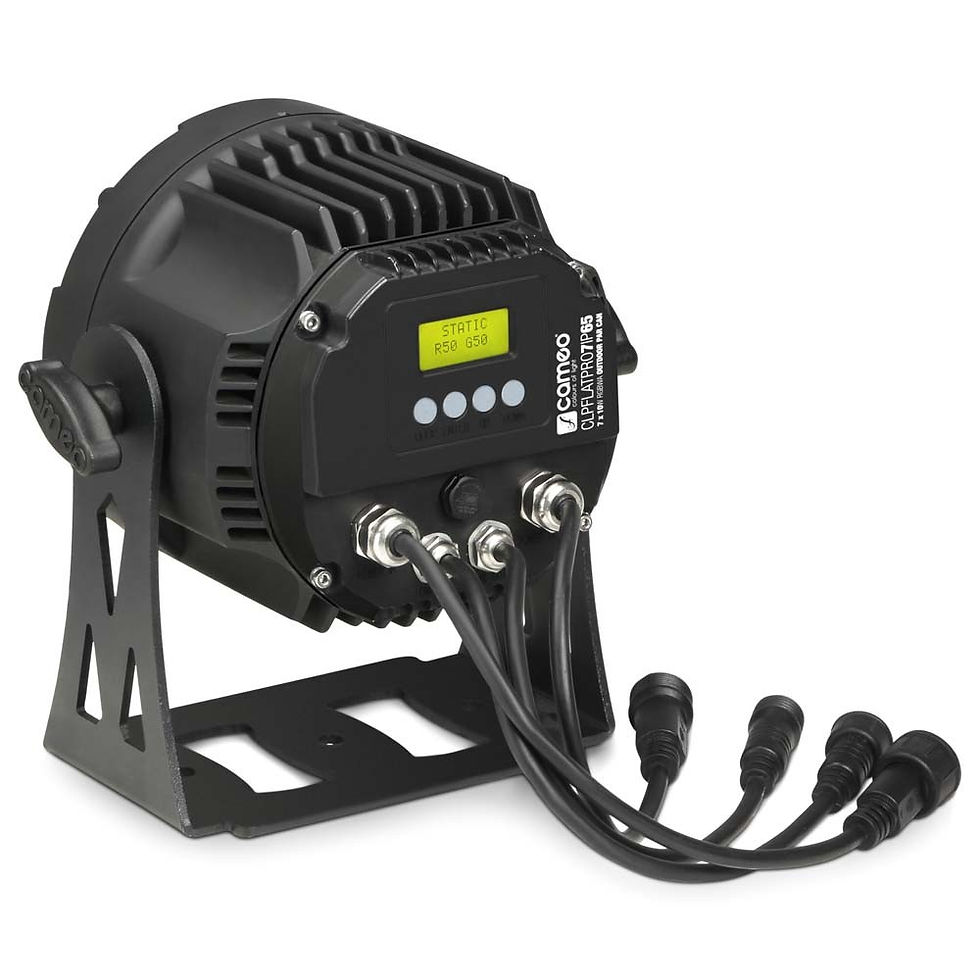

CAMEO LIGHTS P FLAT PRO 7 IP65

CAMEO LIGHTS P FLAT PRO 7 IP65

$0.00Price
7 x 10 W FLAT LED Outdoor RGBWA PAR Light in Black Housing

Item No.: CLPFLATPRO7IP65

  • Ultra High performance ultra-bright 10W LEDs

  • Absolutely silent operation due to efficient convection cooling

  • RGBWA colour spectrum for more flexible colour mixing reaching from warm, rich to solid and pastel colours

  • Flicker Free

  • IP65 for outdoor use

  • Rugged flat and compact metal housing

  • Description

    Rated IP65 according to EN 60529, the Cameo CLPFLATPRO7IP65 is a professional PAR light for exciting, creative outdoor lighting. With an illuminance of 10,000 lux and 30° beam angle the super slim fixture is most suitable where space is limited while the convection cooling design allows a 100% silent operation. 7 ultra bright high performance 10 watt LEDs produce a huge range of RGBWA colours from soft pastel hues to rich, warm tints, and the 3,000 Hz refresh rate eliminates flicker.



    The CLPFLATPRO7IP65 sports a total of 5 DMX modes with multiple functions, built-in programs and an LED Display with 4 controls for easy manual operation. It also provides master, slave and standalone capability.



    The Cameo CLPFLATPRO7IP65 is totally protected against dust and low pressure water jets from all directions. The purpose designed die-cast enclosure includes dedicated screw connectors for DMX signal and power input and output which enable daisy- chaining up to 10 units. The universal bracket allows for numerous mounting options.

  • Specification

    Product type LED PAR Lighting
    Type Outdoor
    Colour spectrum RGBWA
    Number of LEDs 7
    LED type 10 W
    Refresh rate 3000 Hz
    Dispersion 30 °
    DMX input 3-pin special connector, screwable
    DMX output 3-pin special connector, screwable
    DMX mode 2-channel , 3-channel 1 , 3-channel 2 , 5-channel , 8-channel
    DMX Functions colour fade , colour jump , master dimmer , RGBWA , strobe
    Standalone modes colour fade , colour jump , colour macro , slave mode , static colour
    Controls Enter , Mode , Value Down , Value Up
    Indicators backlit LCD
    Operating voltage 110 V AC - 240 V AC / 50 – 60 Hz
    Power consumption 100 W
    Power connector 3-pin special connector, screwable
    Housing material metal
    Cabinet colour Black
    Protection class IP 65
    Cooling Convection
    Illuminance 10000lx @ 1m
    Operating Temperature -5 - 45 °C



    Dimensions without mounting bracket

    Width 180 mm
    Height 180 mm
    Length 160 mm
    Weight 4 kg
