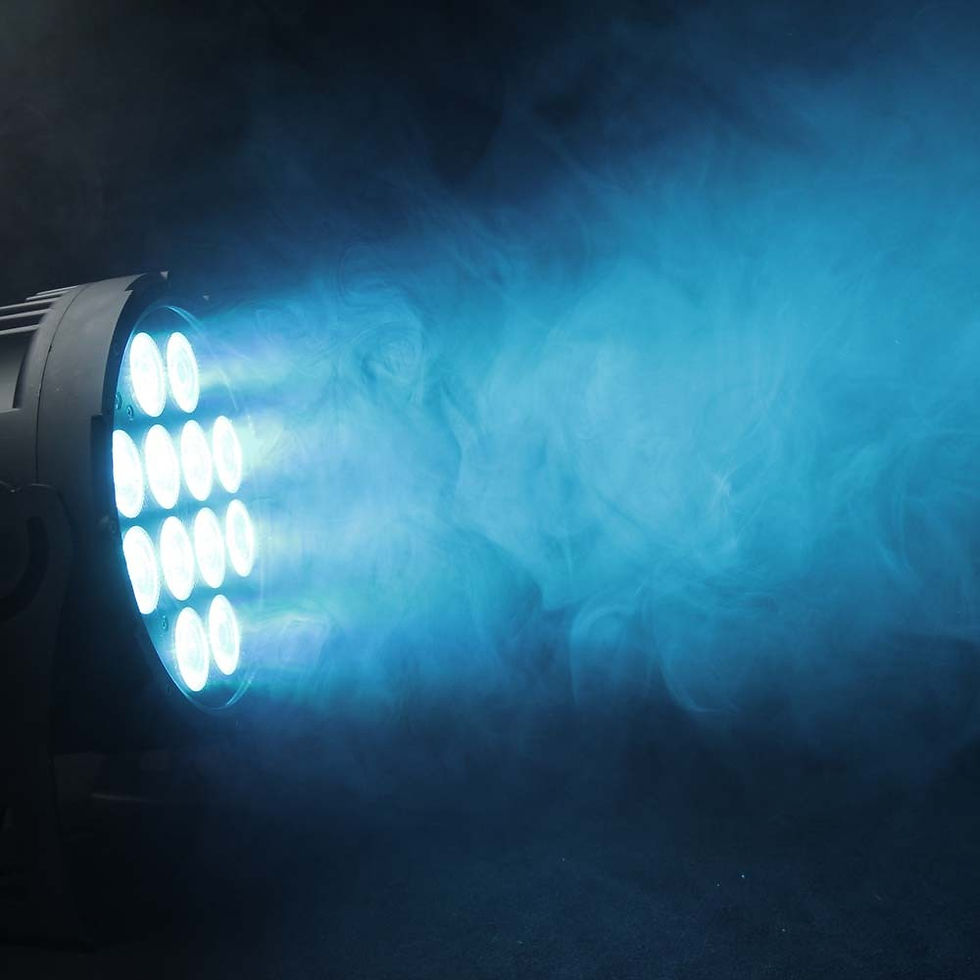

CAMEO LIGHTS P FLAT PRO 12 IP65

CAMEO LIGHTS P FLAT PRO 12 IP65

$0.00Price
12 x 10 W FLAT LED Outdoor RGBWA PAR Light in Black Housing

Item No.: CLPFLATPRO12IP65

  • Ultra High performance ultra-bright 10W LEDs

  • Absolutely silent operation due to efficient convection cooling

  • RGBWA colour spectrum for more flexible colour mixing reaching from warm, rich to solid and pastel colours

  • Flicker Free

  • IP65 for outdoor use

  • Rugged flat and compact metal housing

  • Description

    Featuring an IP65 rating according to EN 60529, the Cameo CLPFLATPRO12IP65 professional PAR light supports vibrant lighting in the open. The super slim design is ideal where space is limited while the convection cooling design allows a 100% silent operation. 12 ultra bright high performance 10 watt RGBWA LEDs produce a wide range of colours from soft pastel hues to rich, warm tints with an intense 15.000 lux and 30° beam angle. In addition, the 3,000 Hz refresh rate eliminates flicker.



    The CLPFLATPRO12IP65 sports a total of 5 DMX modes with multiple functions, built-in programs and an LED Display with 4 controls for easy manual operation. It also provides master, slave and standalone capability.



    The Cameo CLPFLATPRO12IP65's rugged die-cast enclosure is totally protected against dust and low pressure water jets from all directions. The purpose design includes dedicated screw connectors for DMX signal and power input and output to enable daisy-chaining up to 10 units. The universal bracket offers various mounting options.

  • Specification

    Product type LED PAR Lighting
    Type Outdoor
    Colour spectrum RGBWA
    Number of LEDs 12
    LED type 10 W
    Refresh rate 3000 Hz
    Dispersion 30 °
    DMX input 3-pin special connector, screwable
    DMX output 3-pin special connector, screwable
    DMX mode 2-channel , 3-channel 1 , 3-channel 2 , 5-channel , 8-channel
    DMX Functions colour fade , colour jump , master dimmer , RGBWA , strobe
    Standalone modes colour fade , colour jump , colour macro , slave mode , static colour
    Controls Enter , Mode , Value Down , Value Up
    Indicators backlit LCD
    Operating voltage 110 V AC - 240 V AC / 50 – 60 Hz
    Power consumption 140 W
    Power connector 3-pin special connector, screwable
    Housing material metal
    Cabinet colour Black
    Protection class IP 65
    Cooling Convection
    Illuminance 15000lx @ 1m
    Operating Temperature -5 - 45 °C



    Dimensions without mounting bracket

    Width 230 mm
    Height 230 mm
    Length 160 mm
    Weight 6 kg
