LD SYSTEMS WIN 42 BPH 2
Wireless Microphone System with 2 x Belt Pack and 2 x Headset
Item No.: LDWIN42BPH2
Due to the changed situation in the area of general frequency allocations for the operation of wireless systems starting in 2015, LD Systems decided to develop the even more flexible and highly professional WIN 42 wireless system. With its outstanding audio quality, the LD Systems WIN 42 UHF system offers numerous potential applications for live performances and permanent installations. The working UHF frequency range is 734 MHz to 776 MHz. Both the handheld microphone and belt pack transmitter versions provide any vocalist, speaker or instrumentalist optimal transmission of his or her performance with the greatest possible freedom of movement. By means of a threaded connection, the microphone head of the handheld transmitter can be swapped quickly and easily (dynamic and condenser capsules). The system has more than 1680 freely selectable frequencies and thus makes it possible to operate up to 20 systems simultaneously. The "channel scan" function assists you in finding and tuning to a transmission frequency without interference. This frequency is then transmitted simply and conveniently from receiver to transmitter via an infrared link. The transmitting power is adjustable in 3 stages (10, 30, 50 mW) directly on the microphone, permitting adaptation to any environment. The half-rack True Diversity receiver houses numerous system features, for example, a transmitter battery status indicator on the receiver display, an indicator for the (transmitter) "Mute On/Off" function on the receiver display, 4 EQ presets that are switchable at the receiver, and much more. A highly professional system embodying the outstanding value-for-money that is so typical for LD Systems.
Specification
Product type Wireless Microphone Systems Type Headsets Transmission frequency range 734 - 776 MHz LDWS100RK - LD Systems WIN 42 BPH 2 19" Rack Kit
Product type Wireless Microphone System Accessories Type 19" Rack Kits Colour Black Material Steel Surface Powder coated Weight 0,2 kg LDWIN42BP - LD Systems WIN 42 BPH 2 Bodypack transmitter for LD WIN 42 BPH wireless microphone system
Type Belt Packs Channels 1680 Groups 20 groups + 1 user group Inputs Mini-XLR (3-pin) with phantom power (for headset) Frequency response 60 - 16.000 Hz Rated HF output power Variable (10, 30, 50 mW) Operating time >14 h (with alkaline batteries) Controls Set Indicators power/battery status low (LED) Operating voltage 2 x AA battery Width 63 mm Height 87 mm Depth 25 mm Weight 0,1 kg Other features Transmission power adjustable in 3 stages LDWIN42R2 - LD Systems WIN 42 BPH 2 Dual receiver

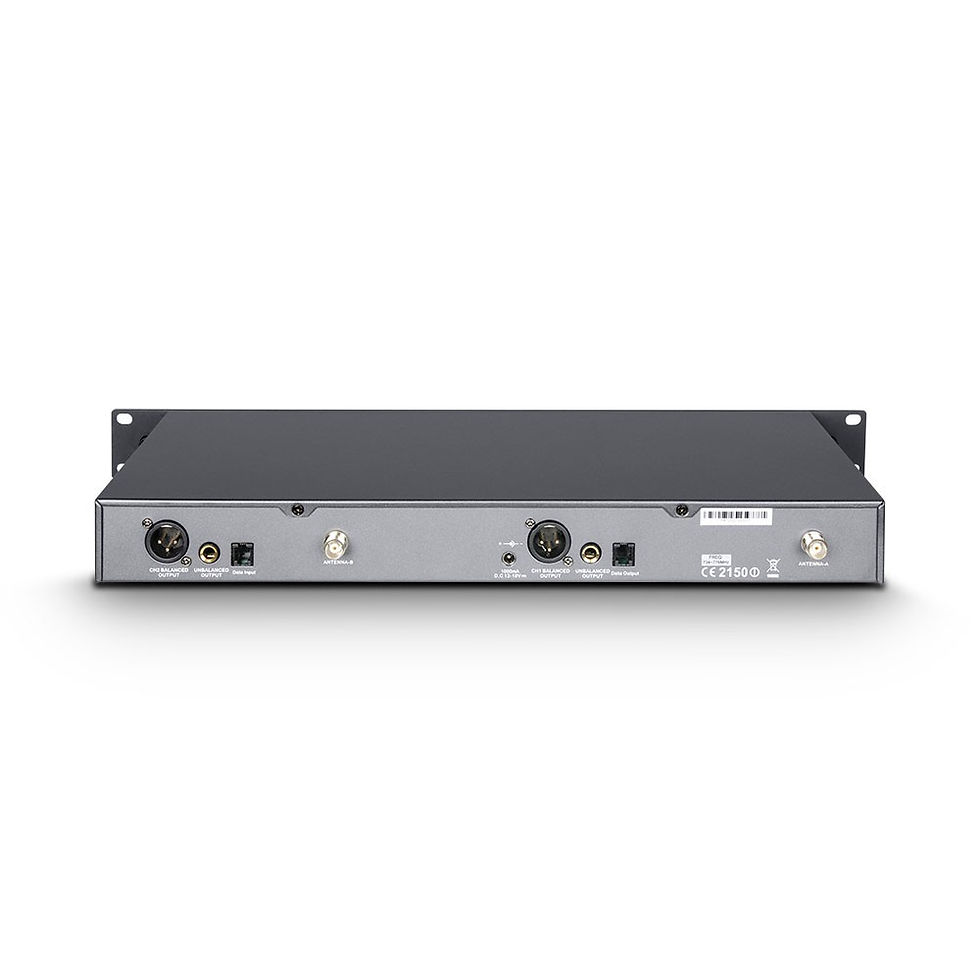

Type Receivers Modulation Type FM Transmission frequency range 734.000 - 776,000 MHz Channels 2 x 1680 Groups 2 x 20 groups + 1 user group Antenna inputs 2 Antenna connector TNC Noise reduction Squelch Transmission optimization address allocation Total Harmonic Distortion (THD) < 1 % Signal-to-noise ratio > 100 dB Audio output, balanced 2 x XLR Audio output, unbalanced 2 x 6.3 mm TS Audio mix output, unbalanced 6.3 mm jack Max. output level + 10 dBu Headphones ouput 2 Headphones outputs 6.3 mm TRS Controls 2 x menu Indicators 2 x multifunction LC display Operating voltage External Power Supply Operating voltage 13.5 V DC Width 480 mm Height 44 mm Depth 190 mm Weight 2,4 kg Accessories (included) User's manual Other features channel search function LDWS100MH1 - LD Systems WIN 42 BPH 2 Headset
Directivity Cardioid Frequency response 20 - 20.000 Hz Nominal impedance 680 Ohm(s) Phantom power requierements 5 V Microphone input Mini-XLR (3-pin, female) Weight 0,049 kg Accessories (included) Foam windscreen
