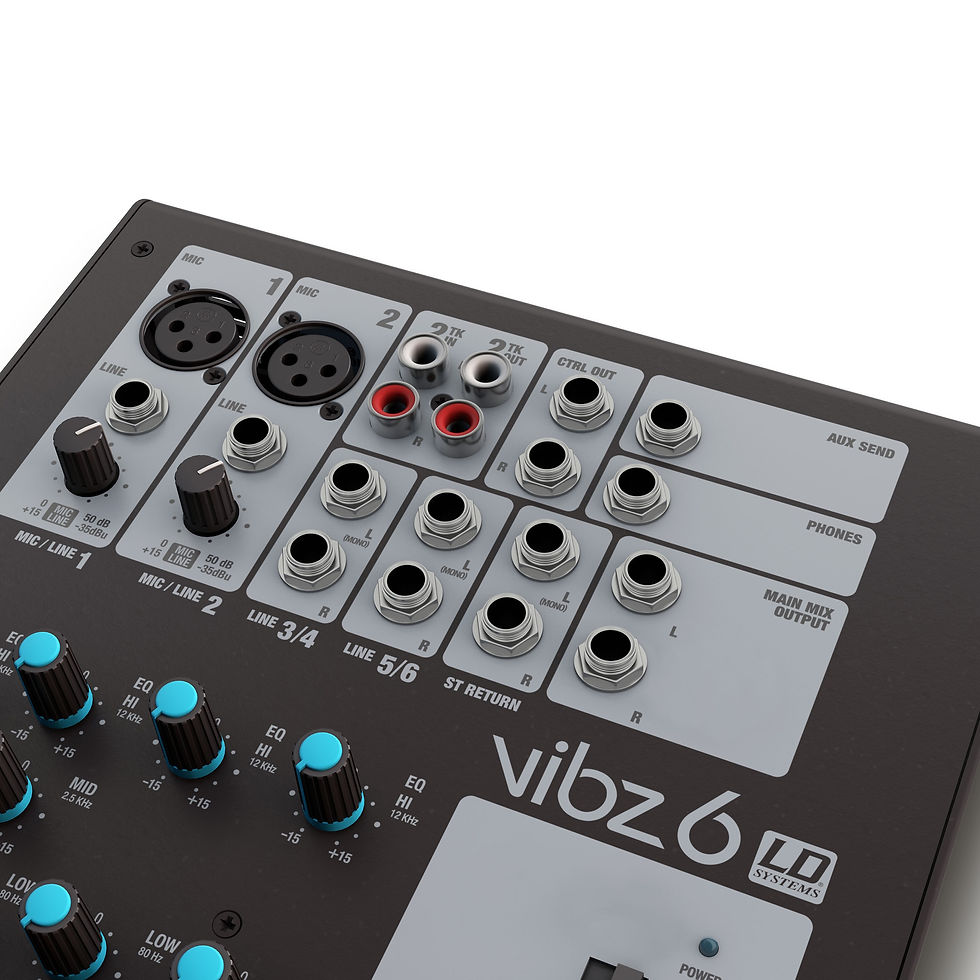

LD SYSTEMS VIBZ 6
6 Channel Mixing Console
Item No.: LDVIBZ6
- 6-channel mixer
- 2 microphone channels with 3-band EQ
- 2 mono-compatible stereo line channels with 2-band EQ
- Master, Monitor and headphone outputs
- Securely fastening external power supply
Description
The VIBZ 6 is a compact 6-channel mixer which is perfectly suited to entertainers, small bands, home recording and installations. It features two balanced microphone inputs with high quality preamps, phantom power and 3-band EQ with +/-15 dB adjustment scope, two stereo line inputs with 2-band EQ, which are mono-compatible.
The master section of the VIBZ 6 is equipped with adjustable monitor outputs and a headphone jack. The mixer also has inputs and outputs for recording and playback devices, is extremely easy to use and offers a warm differentiated sound. The external power supply can be screwed on tightly.
An adapter for mounting the VIBZ 6 on microphone stands are available as accessories.
Specification
Product type Mixers Type Live Channels 6 Mono Channels:
Mono Mic and Line Input Channels 2 Mono Mic input connectors 6.3 mm TRS , XLR Mono Mic Input Type electronically balanced Mono Mic Input Frequency Range 10 - 45000 Hz Amplification Range mono Mic Input 0 - 50 dB Mono Mic Input Input THD-N 0.0058% Mono Mic Input Impedance 4k Ohm(s) Mono Mic Input S/N Ratio 113 dB Mono Line Input Type electronically balanced Mono Line Input Frequency Range 10 - 45000 Hz Amplification Range mono Line Input 0 - 50 dB Mono Line Input Input THD-N 0.0045 % Mono Line Input Impedance 21k Ohm(s) Mono Line Input S/N Ratio 116 dB Mono Channel Equalizer High +/- 15 dB @ 12000 Hz Mono Channel Equalizer Mid +/- 15 dB @ 2500 Hz Mono Channel Equalizer Low +/- 15 dB @ 80 Hz Controls Mono Mic and Line Input Channels 3-band EQ (High, Mid, Low) , AUX Post , Channel Volume , Gain , pan Phantom power 48 V DC switchable Stereo Channels:
Stereo Line Input Channels 2 Stereo Line Input Connectors 6.3 mm TS Stereo Line Input Type unbalanced Stereo Line Input Frequency Range 10 - 45000 Hz Stereo Line Input Input THD-N 0.0045 % Stereo Line Input Impedance 3,7k Ohm(s) Stereo Line Input S/N Ratio 116 dB Stereo channel equalizer treble +/- 15 dB @ 12000 Hz Stereo channel equalizer bass +/- 15 dB @ 80 Hz Controls Stereo Line Input Channels 2-band EQ (High,Low) , AUX Post , Balance , Channel Volume Main Section:
AUX / Effects Send Channels 1 AUX / Effects Send Connectors 6.3 mm stereo jack unbalanced Stereo AUX Return Channels 1 x stereo Stereo AUX Return Connectors 2 x 6.3 mm TRS Stereo Tape Out Channel 1 x stereo Stereo Tape Out Connectors 2 x RCA (Cinch) Stereo Tape In Channel 1 x stereo Stereo Tape In Connenctors 2 x RCA (Cinch) Unbalanced stereo Main Outputs 1 Unbalanced stereo Main Output Connections 6.3 mm TRS Unbalanced Stereo Main Out Impedance 120 Ohm(s) Max. Unbalanced Stereo Main Out Level +20 dBu Stereo Control Room Out 1 Stereo Control Room Out Connectors 6.3 mm stereo jack unbalanced Headphones ouput 1 Headphones outputs 6.3 mm TRS Digital Effects Processor no Main section controls 2-track Assignment (Main, Contr. Room) , 2-track In Volume , Master Volume , Phantom Power , Phones / Control Room Volume , Stereo Return Volume Indicators 4-segment Level Meter , Channel Peak , Phantom Power , Power Operating voltage 18 V AC - 1 A, External PSU , 230 V Width 210 mm Height 67 mm Depth 262 mm Weight 1,45 kg
