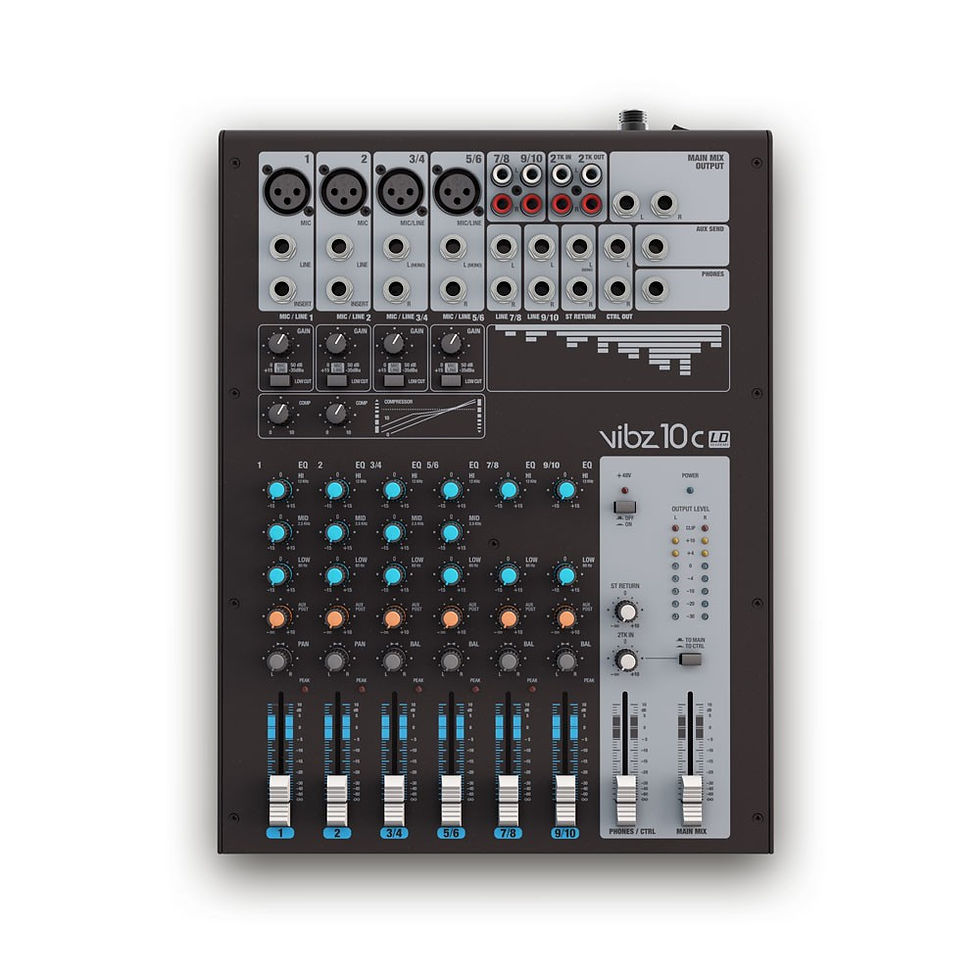

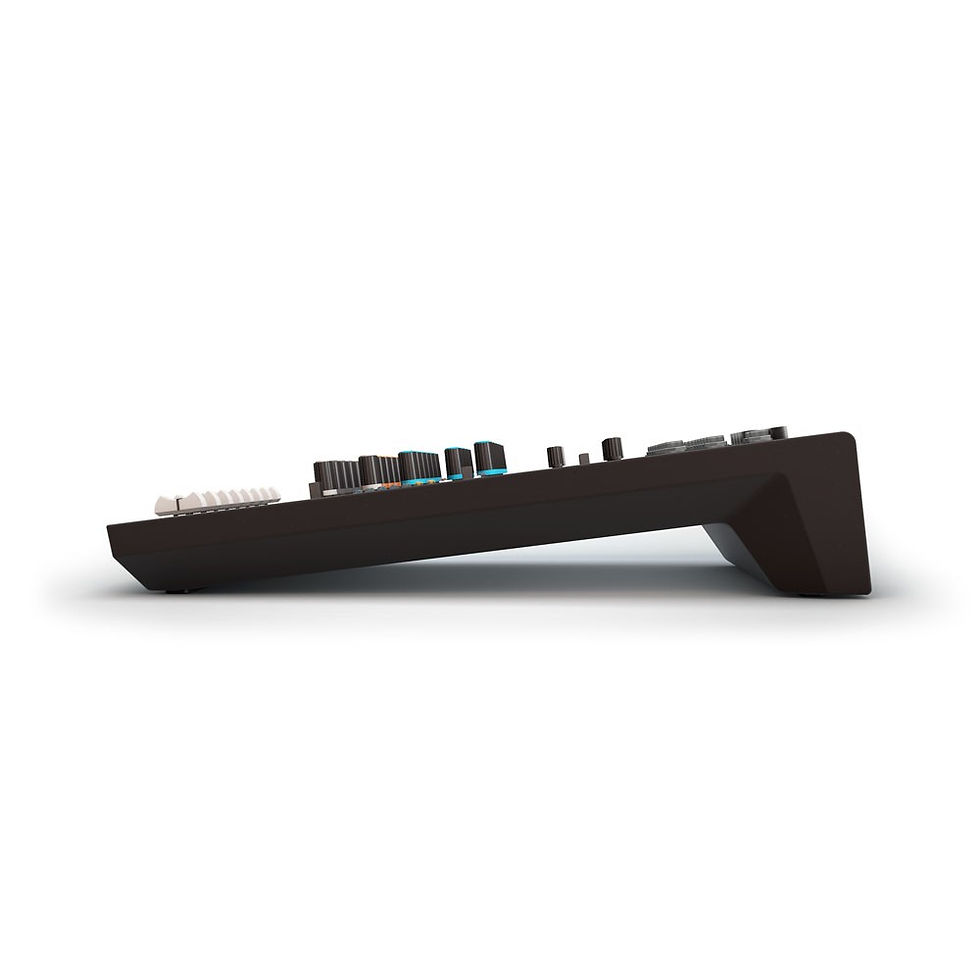

LD SYSTEMS VIBZ 10 C

LD SYSTEMS VIBZ 10 C

$0.00Price
10 Channel Mixing Console with Compressor

Item No.: LDVIBZ10C

  • 10-channel mixer with 4 microphone channels

  • 4 stereo line inputs

  • Effective 3-band EQ

  • 2 stereo channels with 2-band EQ

  • Sliding adjustable compressor

  • Master, Monitor and headphone outputs

  • Securely fastening external power supply

  • Description

    The VIBZ 10 is a versatile mixer with four balanced microphone inputs featuring high quality preamplifiers, a low-cut filter and switchable phantom power. Two microphone inputs are equipped with inserts for individual signal processing, two more can alternatively be used as stereo line channels.



    For an effective sound adjustment, the VIBZ 10 has very precise 3-band EQs with conveniently selected mids; two stereo channels can be adjusted with 2-band EQs. The built-in compressor can be continuously adjusted for effective dynamics processing.



    The master section of the mixer has an effects loop, adjustable monitor outputs and a headphone jack. The VIBZ 10 also has inputs and outputs for recording and playback devices; the input signal can be set on the master or monitor output and the volume adjusted.



    With its transparent, detailed sound and easy operation, VIBZ 10 is the perfect choice for small bands, installations and home recording or sub mixer applications. It comes with an external power supply that can be tightly secured to the mixer. A foot switch for the effects section and an adapter for mounting the VIBZ 10 on microphone stands are available as accessories.

  • Specification

    Product type Mixers
    Type Live
    Channels 10



    Mono Channels:

    Mono Mic and Line Input Channels 4
    Mono Mic input connectors 6.3 mm TRS , XLR
    Channel Inserts 2
    Channel Insert Connectors 6.3 mm TRS
    Mono Mic Input Type electronically balanced
    Mono Mic Input Frequency Range 10 - 45000 Hz
    Amplification Range mono Mic Input 0 - 50 dB
    Mono Mic Input Input THD-N 0.0058%
    Mono Mic Input Impedance 4k Ohm(s)
    Mono Mic Input S/N Ratio 113 dB
    Mono Line Input Type electronically balanced
    Mono Line Input Frequency Range 10 - 45000 Hz
    Amplification Range mono Line Input 0 - 50 dB
    Mono Line Input Input THD-N 0.0045 %
    Mono Line Input Impedance 21k Ohm(s)
    Mono Line Input S/N Ratio 116 dB
    Mono Channel Equalizer High +/- 15 dB @ 12000 Hz
    Mono Channel Equalizer Mid +/- 15 dB @ 2500 Hz
    Mono Channel Equalizer Low +/- 15 dB @ 80 Hz
    Controls Mono Mic and Line Input Channels 3-band EQ (High, Mid, Low) , AUX (DFX) Post , Channel Volume , Compressor , Gain , Low Cut (75 Hz) , pan
    Phantom power 48 V DC switchable



    Stereo Channels:

    Stereo Line Input Channels 4
    Stereo Line Input Connectors 6.3 mm TRS
    Stereo Line Input Type electronically balanced , unbalanced
    Stereo Line Input Frequency Range 10 - 45000 Hz
    Amplification Range stereo Line Input 0 - 50 dB
    Stereo Line Input Input THD-N 0.0045 %
    Stereo Line Input Impedance 3,7k Ohm(s)
    Stereo Line Input S/N Ratio 116 dB
    Stereo channel equalizer treble +/- 15 dB @ 12000 Hz
    Stereo channel equalizer mids +/- 15 dB @ 2500 Hz
    Stereo channel equalizer bass +/- 15 dB @ 80 Hz
    Controls Stereo Line Input Channels 2-band EQ (High,Low) , 3-band EQ (High, Mid, Low) , AUX Post , Balance , Channel Volume , Gain , Low Cut



    Main Section:

    AUX / Effects Send Channels 1
    AUX / Effects Send Connectors 6.3 mm stereo jack unbalanced
    Stereo AUX Return Channels 1 x stereo
    Stereo AUX Return Connectors 6.3 mm TRS
    Stereo Tape Out Channel 1 x stereo
    Stereo Tape Out Connectors 2 x RCA (Cinch)
    Stereo Tape In Channel 1 x stereo
    Stereo Tape In Connenctors 2 x RCA (Cinch)
    Unbalanced stereo Main Outputs 1
    Unbalanced stereo Main Output Connections 6.3 mm TRS
    Unbalanced Stereo Main Out Impedance 120 Ohm(s)
    Max. Unbalanced Stereo Main Out Level 20 dBu
    Stereo Control Room Out 1
    Stereo Control Room Out Connectors 6.3 mm TRS
    Headphones ouput 1
    Headphones outputs 6.3 mm TRS
    Digital Effects Processor no
    Main section controls 2-track Assignment (Main, Contr. Room) , 2-track In Volume , Master Volume , Phantom Power , Phones / Control Room Volume , Stereo Return Volume
    Indicators Phantom Power , Power
    Operating voltage 18 V AC - 1 A, External PSU , 230 V
    Width 265 mm
    Height 78 mm
    Depth 352 mm
    Weight 2,3 kg
