LD SYSTEMS U518 HHC
Wireless Microphone System with Condenser Handheld Microphone
Item No.: LDU518HHC
- True diversity UHF wireless system
- Shock-mounted dynamic and condenser microphone capsules
- Automatic channel scan
- Easy one-touch infrared frequency syncing
- Pilot tone squelch circuit prevents noise
- Switchable RF transmitter output (2, 10 or 30 mW)
- Rugged enclosures
- High-contrast OLED display
Description
The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.
Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.
High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.
The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.
Overview of frequency ranges of vocal sets:
- U505 // 584 - 608 MHz // 12 systems can be used simultaneously
- U506 // 655 - 679 MHz // 12 systems can be used simultaneously
- U508 // 823 - 832 MHz + 863 - 865 MHz // six systems can be used simultaneously
- U506 UK (Channel 38) // 606 – 614 MHz // six systems can be used simultaneously
- U518 // 1785 – 1800 MHz // four systems can be used simultaneousl
Specification
Product type Wireless Microphone Systems Type Handhelds Transmission frequency range 1785 - 1800 MHz Weight 2,597 kg LDU518MC - LD Systems U518 HHC Condenser handheld microphone

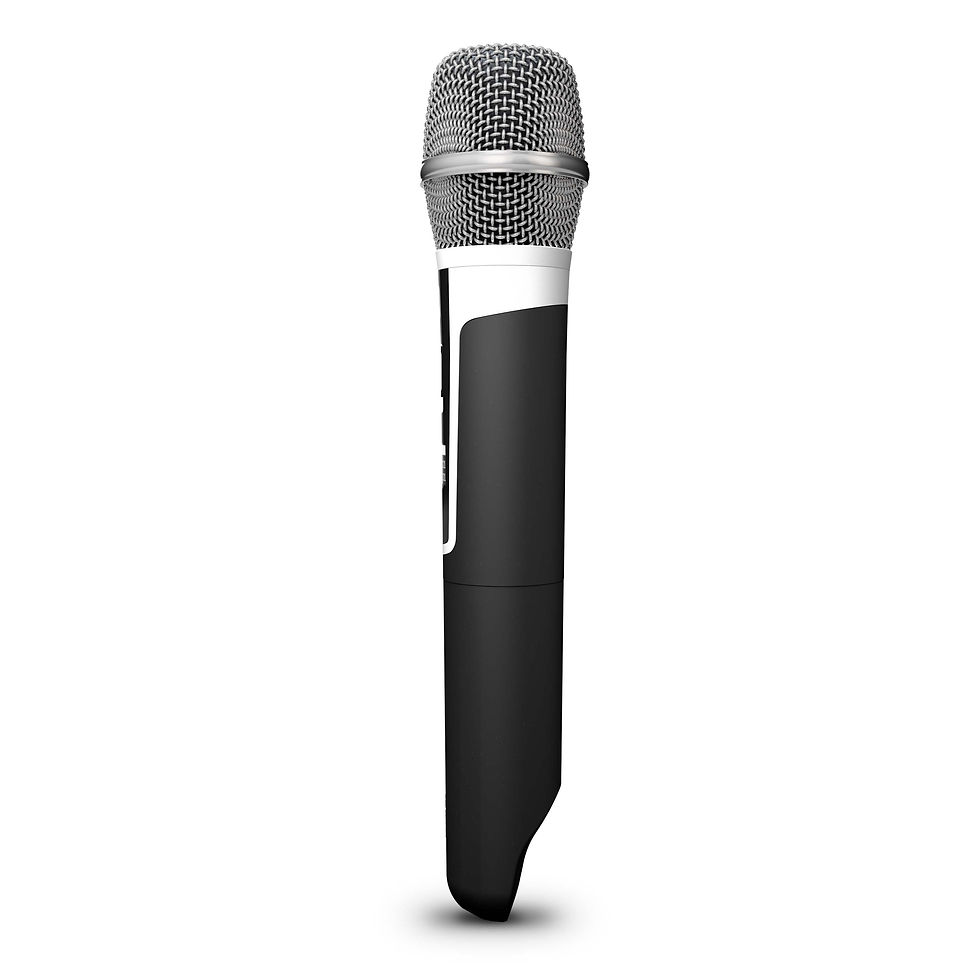

Product type switchable gain Type Microphones Microphone type condenser Directivity Cardioid Frequency response 60 - 16000 Hz Signal-to-noise ratio >95 dB Rated HF output power Variable (10, 30, 50 mW) Controls select Operating voltage 2 x AA battery Operating time >10 h (with alkaline batteries) Length 257 mm Diameter 50 mm Weight 0,25 kg LDU518R - LD Systems U518 HHC Receiver

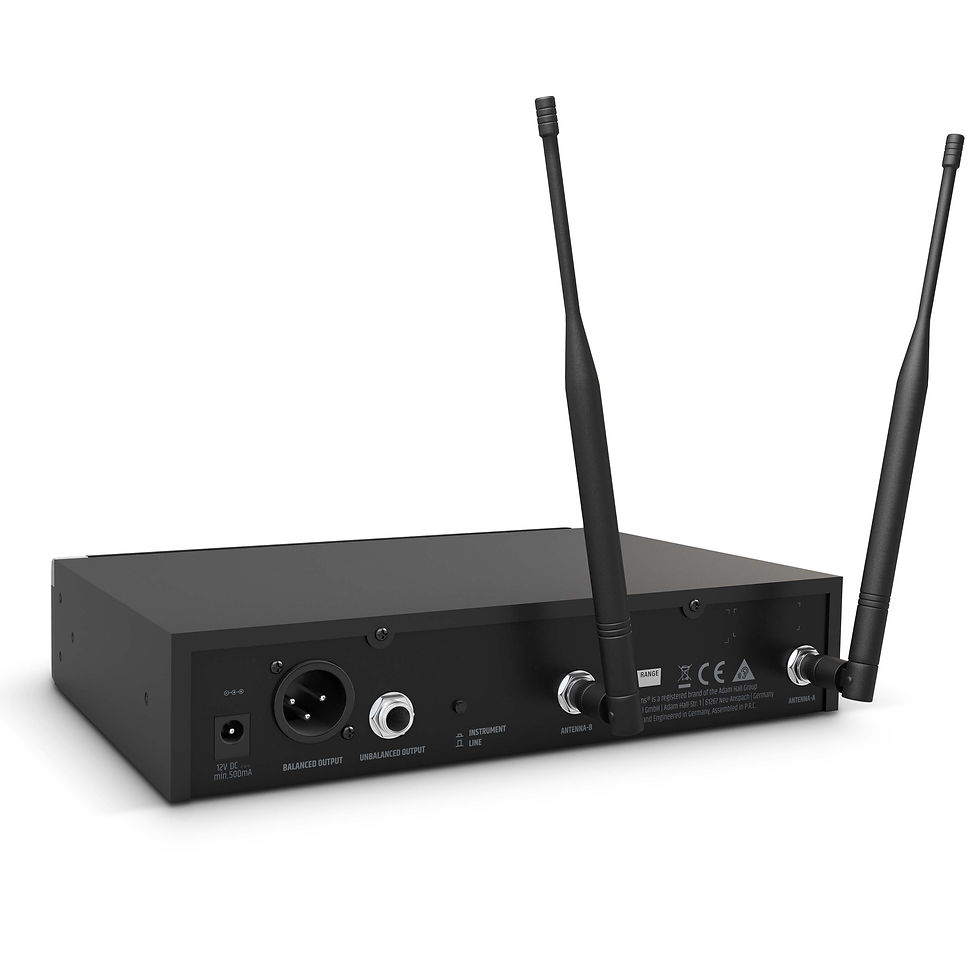

Product type Wireless Microphone System Accessories Type Receivers Modulation Type FM Channels 96 (8 groups of 12 channels) Groups 8 Antenna inputs 2 Antenna connector BNC Frequency response 30 - 16000 Hz Signal-to-noise ratio > 100 dB Noise reduction Squelch Total Harmonic Distortion (THD) < 0.1 % Audio output, balanced XLR Controls volume Audio output, unbalanced 6.3 mm jack Operating voltage 12 - 18 V DC Max. output level +10 dBu Weight 0,85 kg Indicators OLED Display Operating voltage 12 V DC, 500 mA Width 212 mm Height 44 mm Depth 159 mm Accessories (included) Power cord Other features Pilot tone
