LD SYSTEMS U506 HBH 2

The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.

Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.

High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.

The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.

Overview of frequency ranges of vocal sets:

• U505 // 584 - 608 MHz // 12 systems can be used simultaneously
• U506 // 655 - 679 MHz // 12 systems can be used simultaneously
• U508 // 823 - 832 MHz + 863 - 865 MHz // six systems can be used simultaneously
• U506 UK (Channel 38) // 606 – 614 MHz // six systems can be used simultaneously
• U518 // 1785 – 1800 MHz // four systems can be used simultaneousl

Product type	Wireless Microphone Systems
Type	Headsets / Handhelds
Transmission frequency range	655 - 679 MHz
Weight	5,3 kg

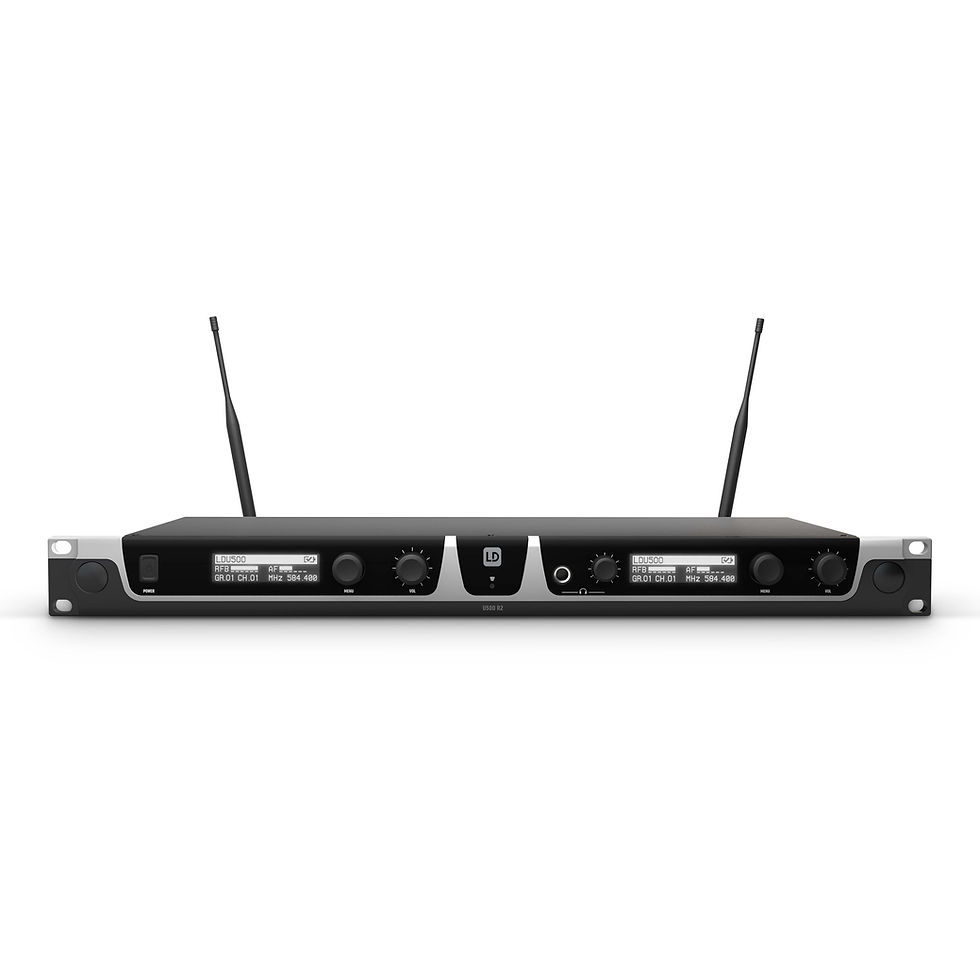

LDU506R2 - LD Systems U506 HBH 2 Dual receiver

Product type	Wireless Microphone System Accessories
Type	true diversity
Modulation Type	FM
Channels	2 x 160
Frequency response	60 - 16.000 Hz
Groups	2 x 10
Antenna inputs	2
Antenna connector	BNC
Signal-to-noise ratio	> 105 dB
Noise reduction	Squelch
Controls	volume headphones
Audio output, balanced	2 x XLR
Indicators	2 x multifunction LC display
Audio mix output, balanced	XLR
Operating voltage	13.5 V DC
Accessories (included)	Power supply
Audio mix output, unbalanced	6.3 mm jack
Width	483 mm
Height	45 mm
Depth	190 mm
Weight	2,05 kg
Max. output level	symmetrical -8 dBu
Headphones ouput	1
Headphones outputs	6.3 mm TRS
Other features	IR frequency synchronisation



LDU506BP - LD Systems U506 HBH 2 Bodypack transmitter

Type	Bodypack
Channels	96 (8 groups of 12 channels)
Frequency response	30 - 16000 Hz
Groups	8
Inputs	Mini-XLR (3-pin)
Signal-to-noise ratio	>90 dB
Rated HF output power	Variable (2mW, 10mW, 30mW)
Controls	Set
Indicators	OLED Display
Operating time	>10 h (with alkaline batteries)
Operating voltage	2 x AA battery
Width	65 mm
Height	86 mm
Depth	23 mm
Weight	0,09 kg
Other features	switchable RF power



LDWS100MH1 - LD Systems U506 HBH 2 Headset

Type	Headsets
Frequency response	20 - 20.000 Hz
Nominal impedance	680 Ohm(s)
Phantom power requierements	5 V
Microphone input	Mini-XLR (3-pin, female)
Accessories (included)	Foam windscreen
Weight	0,049 kg



LDU506MD - LD Systems U506 HBH 2 Dynamic handheld microphone

Type	Microphones
Frequency response	60 - 16,000 Hz
Microphone type	Dynamic
Directivity	Cardioid
Operating voltage	2 x 1.5 V AA
Weight	0,25 kg
Length	252 mm
Diameter	52 mm
Other features	interchangeable capsule
