LD SYSTEMS SAT 122 G2

LD SYSTEMS SAT 122 G2

$0.00Price
12" passive Installation Speaker black

Item No.: LDSAT122G2

  • Passive 2-way bass-reflex installation speaker

  • 250 W permanent load capacity

  • 121 dB maximum sound-level pressure

  • 12" custom woofer and 1" Celestion high-frequency driver

  • Rotating CD horn with 80° x 60° dispersion

  • For vertical or horizontal use

  • speakON-compatible and terminal block input

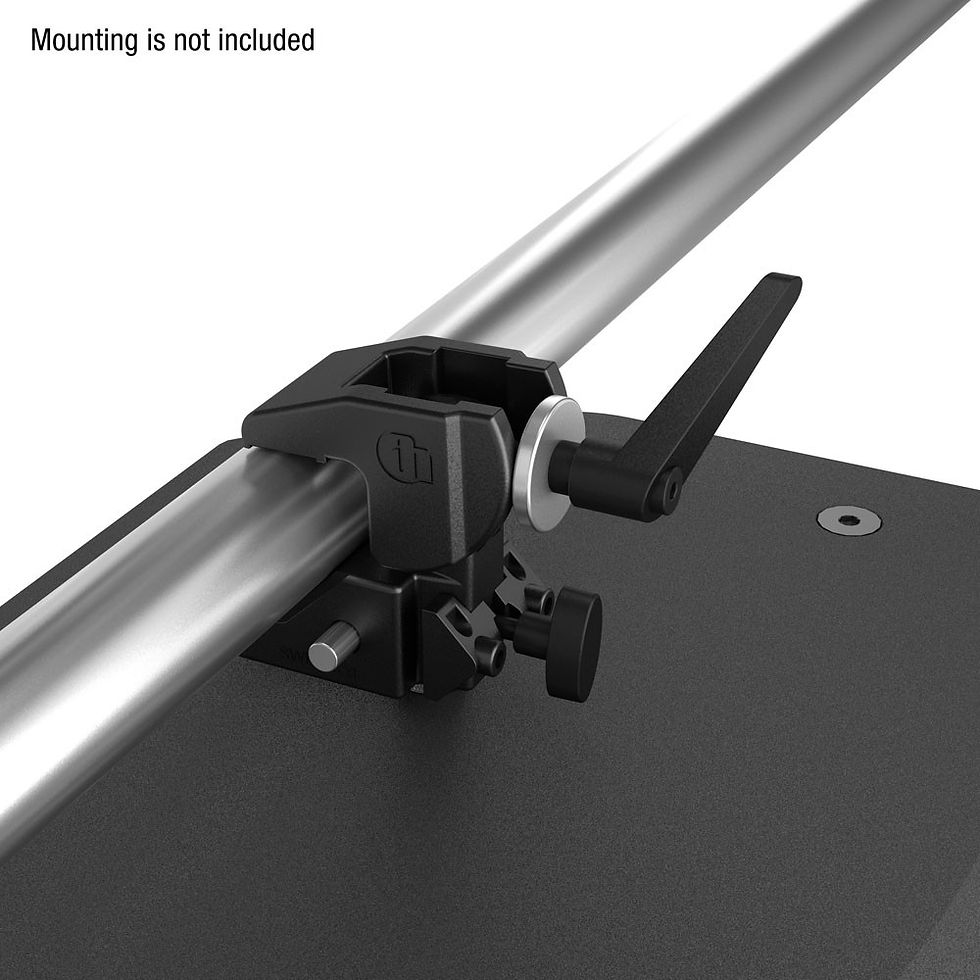

  • 4 x M8 mounting holes

  • Shock-resistant front grille for optimum speaker protection

  • Extensive range of smart accessories for installation

  • Available in black or white

  • Description

    With its streamlined, elegant design, the LD Systems SAT 122 G2 is excellently suited for permanent installation and discreet integration into virtually any setting. It features a 12" custom woofer and a 1" compression driver from Celestion, connected to a rotating CD horn with 80° x 60° dispersion. This makes the passive 2-way speaker ideal for both vertical and horizontal use.



    The SAT 122 G2 achieves a maximum sound pressure level of 121 dB over a frequency response curve of 60 Hz to 19 kHz with a permanent load capacity of 250 watts. The reflex casing made of 15 mm MDF has four M8 mounting holes. The inputs are a speakON-compatible socket and a terminal block, while an additional terminal block serves as an output for convenient parallel connection.



    Special wall holders are available as an accessory to facilitate wall mounting. The SAT 122 G2 is available in black (Art. No. LDSAT1222G2) or white textured finish (Art. No. LDSAT1222G2W).

  • Specification

    Product type Installation Loudspeakers
    Type Wall-mounted Loudspeaker
    Low/mid driver dimensions 12 "
    Woofer size 304.8 mm
    Woofer magnet Ferrite
    Woofer brand Custom-made
    Woofer voice coil (mm) 63.5 mm
    Horn CD horn
    HF driver dimensions 1 "
    HF Driver Size 25.4 mm
    HF driver magnet Ferrite
    HF driver brand Celestion
    HF driver voice coil 1 "
    HF Driver Voice Coil 25.4 mm
    Dispersion (H x V) 80 x 60 °
    Load rating (RMS) 250 W
    Peak power 500 W
    Frequency response 60 - 19000 Hz
    SPL (1W/1m) 97 dB
    Max. SPL 121 dB
    Impedance 8 Ohm(s)
    Protection circuits HF Driver
    Loudspeaker inputs 2
    Speaker input connections Speakon compatible , terminal block
    Loudspeaker outputs 1
    Speaker output connections terminal block
    Speakers per amplifier channel (DSP44/45K) 3
    Cabinet material 15 mm MDF
    Cabinet surface texture paint
    Cabinet colour Black
    Cabinet construction vented
    Width 350 mm
    Height 580 mm
    Depth 310 mm
    Weight 16,3 kg
