LD SYSTEMS CONTRACTOR CICS 52 100 V
5.25" 2-way in-ceiling speaker 100 V
Item No.: LDCICS52100V
- Elegant ceiling speaker
- 5.25" woofer
- 1.2" high-frequency driver
- Low installation depth
- 40 watts continuous power
- Frequency range up to 20 kHz
- High speech intelligibility
- Easy and safe assembly
- For hotels, restaurants, bars, lounges, shopping centres, conference rooms etc.
- Also available as a 100 V version
Description

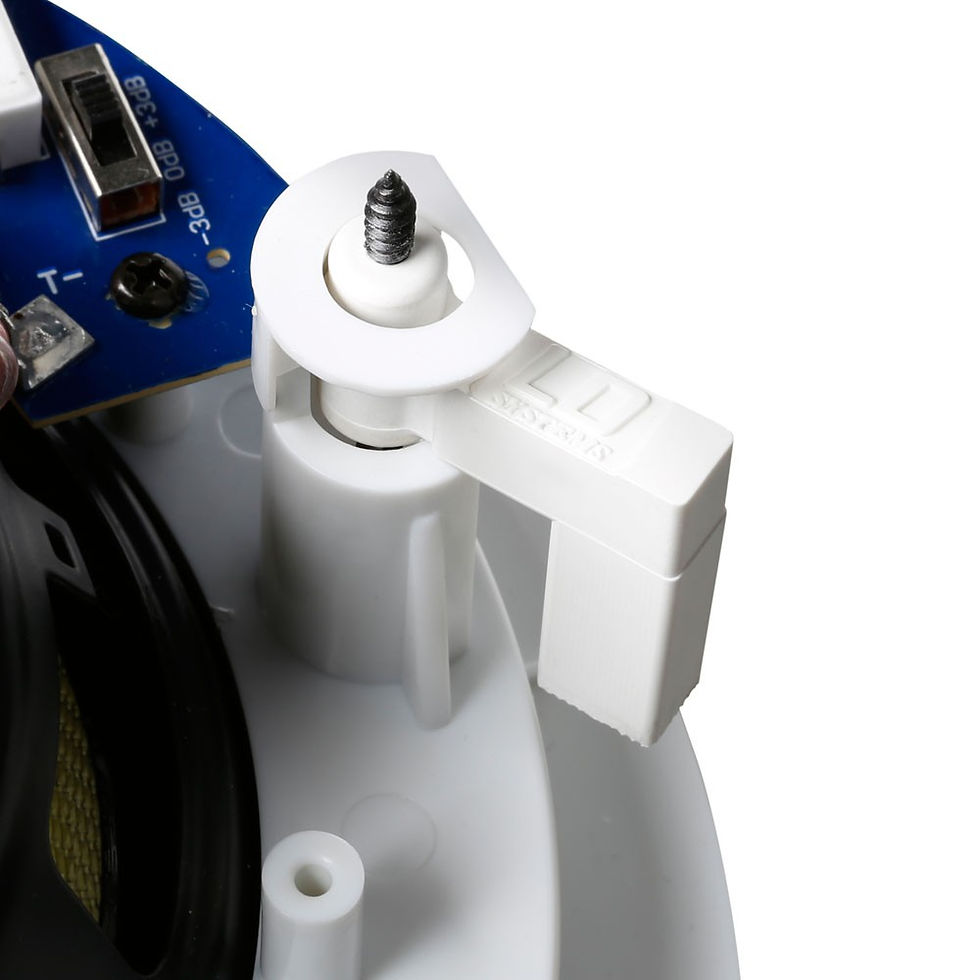

The Contractor CICS 52 is a round in-wall speaker for installation in ceilings, that delivers a powerful sound and an appealing look. It is equipped with a 5.25" woofer and coaxial arranged 1.2" tweeter that feature a frequency response up to 20 kHz and high speech intelligibility. The CICS 52 reaches a sound pressure level of 88 dB at 1 W / 1 m and has a power capacity of 40 watts of continuous power. It features a secure mounting system with swivels for easy and fast installation. The ceiling speaker is designed for a wide scope of applications, providing a discreet sound in hotels, restaurants, bars, lounges, training and conference rooms, or shopping centres.
For ELA systems, the CICS 52 is available as a 100 Volt version (CICS 52 100 V) with three taps for 6, 12, and 24 watts.
Specification
Product type Installation Loudspeakers Type Ceiling-mounted Loudspeaker Version Wall and ceiling installation speaker Speaker type 2-way speaker Colour white Woofer dimensions 5.25 " Woofer size 133 mm Tweeter dimensions 1.2 " Tweeter dimensions (mm) 30 mm Cut-out measurement 170 mm Mounting depth 83 mm Min. Material Thickness 2.5 mm Max. Material Thickness 31 mm Impedance (low-impedance) 8 Ohm(s) 100 V Inputs 12 W , 24 W , 6 W Frequency response 80 - 20000 Hz Sensitivity (1 W / 1 m) 88 dB Low-impedance rated load (RMS) 40 W Depth 92 mm Diameter 202 mm Weight 1,31 kg
