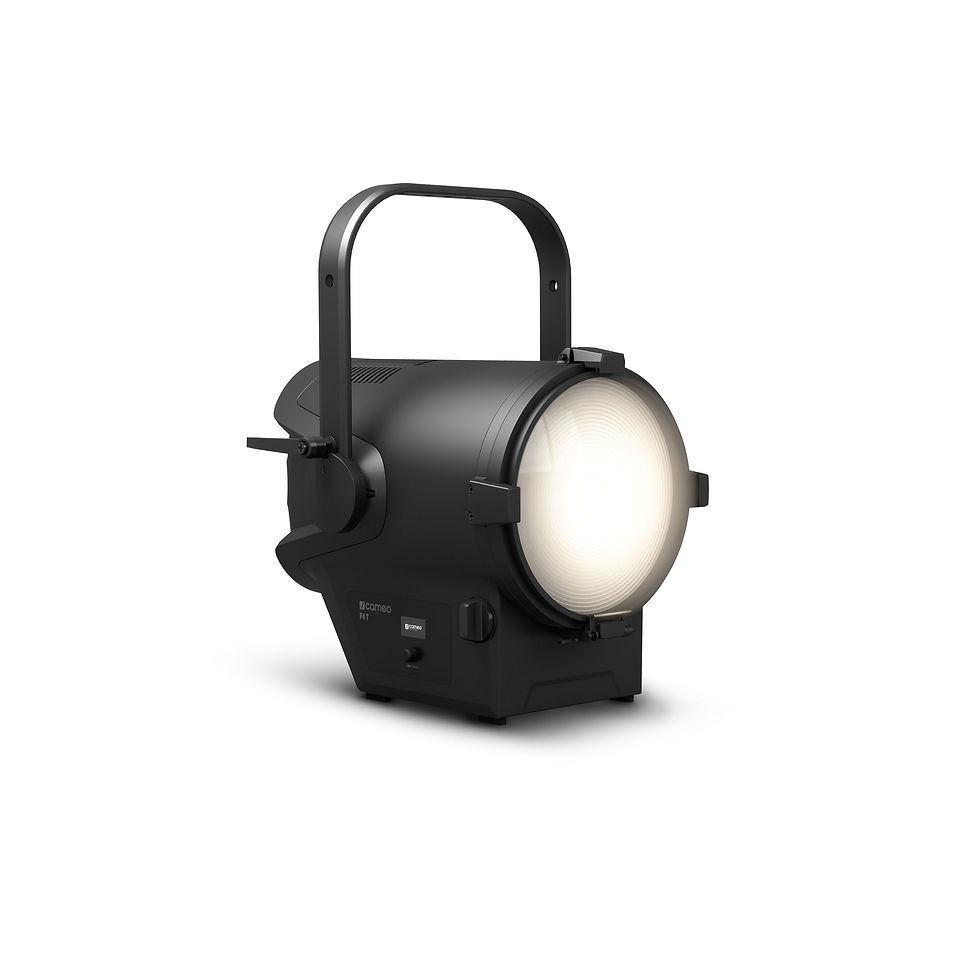

Cameo F4 T
High-Power Fresnel Spotlight with Tungsten LED
- Tungsten LED Fresnel spotlight with 29,500 lm total power output, replaces conventional 2 kW halogen Fresnel
- Lifelike colour reproduction, CRI rating of 96, TLCI of 96
- Continuous zoom for beam angles from 12° to 40°
- Four selectable 16-bit dimmer curves with adjustable response
- Highly efficient cooling thanks to a heatpipe and temperature-controlled fan
- Control via DMX or RDM, silent mode for studio use
- Selectable pulse width modulation frequencies up to 25 kHz
- Flicker-free and noiseless operation, ideal for TV, film, photography studios and theatre
- Quicklight function to save time when setting lights
- 8-way barndoor and gel frames included
Description
Warm-white light is essential for creating atmospheric stage experiences: The Cameo F4 T is a professional Fresnel spotlight with a high-quality 250 mm lens and high luminous flux of 29,500 lm. The RDM-capable spotlight creates a soft-edged beam of light with a continuously adjustable beam angle of 12° to 40° and is a perfect, energy-saving replacement for traditional 2-kW Fresnel models. Its 520-watt warm-white LED has a colour temperature of 3,200 K and a service life of 50,000 hours. Its extremely high colour rendering index of 96 reproduces pure and natural colours.
The F4 T has 6 DMX control modes, a fast strobe function and 4 16-bit dimmer curves with adjustable response. The unique quicklight function makes setting up the spotlight much easier. Simply remove the DMX signal for a moment, increase the lighting brightness via the push encoder and adjust the spotlight. Six selectable pulse width modulation frequencies up to 25 kHz ensure flicker-free operation. High-efficiency heatpipe cooling and a temperature-controlled fan provide optimal operation. The robust, die-cast aluminium housing is equipped with a push encoder and OLED display for easy configuration of the spotlight. 5-pin DMX connectors facilitate simple daisy-chaining. 8-way barndoor, a gel frame and mains cable are included.
Specification
Product type
LED Fresnel Spotlight
Type
Theater Fresnel
Colour spectrum
Tungsten , warm white
Number of LEDs
1
LED type
520 W (approx. 50,000 operating hours)
LED PWM Frequency
Adjustable: 800, 1200, 2000, 3600, 12000, 25000 Hz
Dispersion
Beam Angle: 12 - 40 ° , Field Angle: 24 - 47 °
Lens
250 mm Fresnel
DMX input
5-Pol
DMX output
5-Pol
DMX Functions
Device Settings , Dimmer , Dimmer Curve , Dimmer Fine , strobe
Standalone modes
Master / Slave mode , Static
Controls
Push encoder
Indicators
OLED Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
473 W
Power connector
TRUE1 compatible Power I/O sockets
Power supply connection
TRUE1 compatible Power I/O sockets
Housing material
Die-cast aluminum
Cabinet colour
Black
Protection class IP
IP20
Cooling
Comination of Heat Pipe and Temperature Controlled Fan
Luminous flux
29500 lm
Efficiency
59 lm/W
Colour temperature
3200 K
Ambient temperature (operating)
-15 - 45 °C
Dimensions without mounting bracket
Width
410 mm
Height
364 mm
Length
433 mm
Weight
17,8 kg
Accessories (included)
8-way barndoor , gel frame , Power cord
